Power Cables (upto 3.3 KV)
Applications
Used in connection of power supply to residential, commercial, mining, industrial units & Infrastructure Projects.
Type & Size
PVC / XLPE insulated cables conforming to IS:1554-I/ IS: 1554-2/ IS:7098-I/ IS 7098-2, BS:6346, IEC:60502, BS:5467, BS:7846 and Customer specific requirements.
Single Core cables upto 1000 sq.mm.
Multi Core cables upto 630 sq.mm.
Options

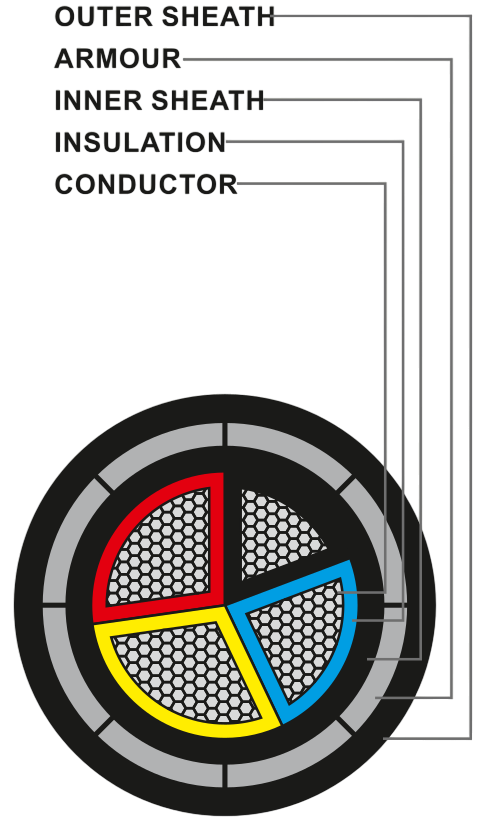

Conductor: Solid/ stranded, circular/ shaped, copper/ aluminium.
Insulation: PVC – GP/ HR; XLPE, LSZH/ HFFR, EPR
Inner Sheath: PVC – GP/ HR/ FR/ FRLS; LSZH
Armour (for Armoured Cables): Galvanised steel wire/ strip/ tape or aluminium wire/ ATC Copper Wire.
Outer Sheath: PVC – GP/ HR/ FR/ FRLS, LSZH/ HFFR
