Instrumentation, Signal and Data Cables
Applications
Used in data acquisition systems, computer networking, PA systems, digital control / measuring, communication & Fire Alarm systems. Specially designed to transmit signals without any external interference.
Type & Size
Generally manufactured with conductor sizes 0.5/ 0.75/ 1.0/ 1.5/ 2.5/ 4.0 sq.mm. Conforming to BS EN :50288, IEC-60189, VDE 0815, IEC:60227, BS:7846 and Customer specific requirements.

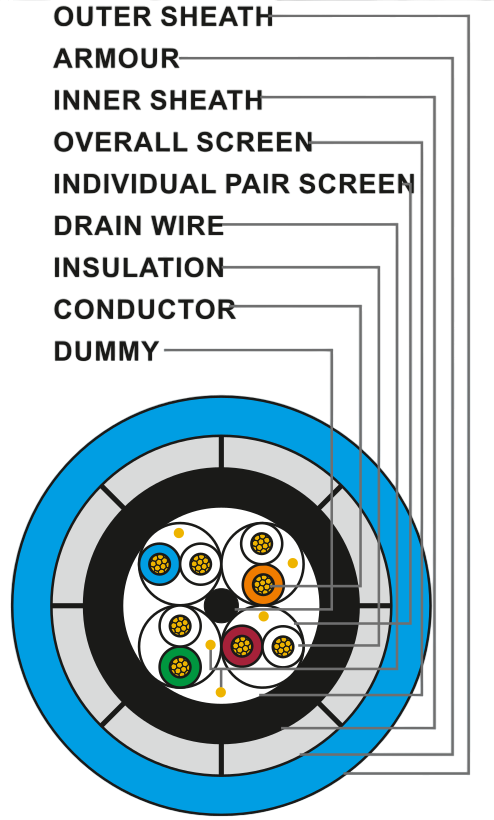

Options
Conductor: solid/ stranded/ flexible copper (bare/ tinned)
Insulation: PVC – GP/ HR/ PE, XLPE, LSZH/ HFFR, EPR
Shielding: Individual & overall or overall screen only by Al-mylar tape/ copper tape/ copper wire braid
Inner Sheath: PVC – GP/ HR/ FR/ FRLS/ PE/ LSZH/ EPR
Armour (for Armoured Cables): Galvanised steel wire/ strip/ tape/ double tape/ braid
Outer Sheath: PVC – GP/ HR/ FR/ FRLS; PE, LSZH/ HFFR, EPR
