Control & Electrical Wiring Cables (upto 1.1 KV)
Applications
Control Cables:
Used in interconnection of process control and panel control systems & used in mining areas.
Electrical Wiring Cables:
Used for electric power, lighting & internal wiring.
Type & Size
PVC / XLPE insulated cables conforming to IS:1554-I / IS:7098-I,BS:6346, IEC:60502, BS:5467, BS:7846, IEC:60227, BS:6004, BS:6500, IS:694 and Customer specific requirements.
Control Cables:
Generally upto 100 Cores with conductor sizes 0.5/ 0.75/ 1.0/ 1.5/ 2.5/ 4.0 sq.mm.
Electrical Wiring Cables:
Single Core cables upto 1000 sq.mm.
Multi Core cables upto 300 sq.mm.

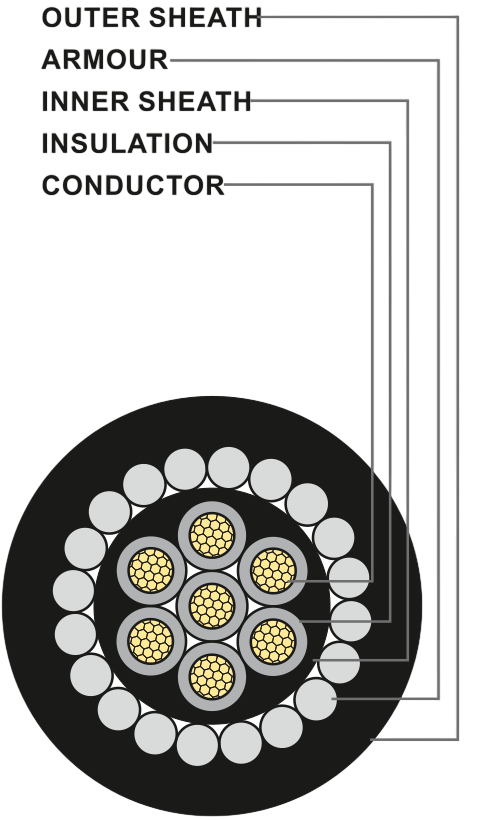

Options
Conductor: Solid/ stranded/ flexible copper, circular/ shaped, copper/ aluminium.
Insulation: PVC – GP/ HR; XLPE, LSZH/ HFFR, EPR
Inner Sheath: PVC – GP/ HR/ FR/ FRLS; LSZH
Armour (for Armoured Cables): Galvanised steel wire/ strip/ tape/ double tape or aluminium wire/ ATC Copper Wire.
Outer Sheath: PVC – GP/ HR/ FR/ FRLS, LSZH/ HFFR
